Minco S101908,S101909,S101910嵌入式RTD溫度傳感器|Pt1000軸承測溫解決方案

發布時間：2026-04-15 08:56:32 瀏覽：17

　　Minco S101908/S101909/S101910屬于微型嵌入式RTD傳感器系列，專為軸承溫度監測、狹小空間安裝及惡劣工業環境設計。

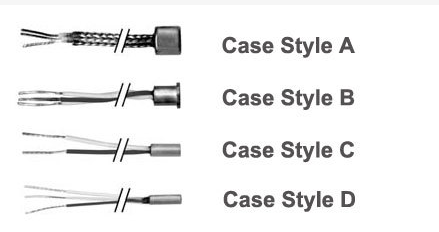

Minco S101908、S101909、S101910嵌入式RTD溫度傳感器

　　其核心特點是：

　　· 小尺寸嵌入安裝(鉆孔或巴氏合金層內)

　　· 快速響應溫度變化

　　· 高精度鉑電阻(Pt1000)

　　· 抗震、抗油滲設計

　　典型應用：

　　· 渦輪機 / 發電機軸承

　　· 電機軸承監測

　　· 壓縮機設備

　　· 重工業旋轉機械

　　系列核心參數(通用特性)

參數	規格
傳感器類型	鉑電阻 RTD（單元）
標稱阻值	1000Ω @ 0°C
精度	±0.12%（Class B）
TCR	0.00385 Ω/Ω/°C
溫度范圍	-50°C ～ +200°C / +260°C（部分型號）
響應時間	1.5 ~ 2.5 秒
安裝方式	埋入式 / 彈簧加載 / 灌封
引線類型	PTFE / 不銹鋼編織 / FEP
抗環境能力	高振動、油污環境

　　三者核心對比

型號	外徑	響應速度	機械強度	適用場景
S101908	最大（4.8mm）	中	????	重載軸承
S101909	中（3.2mm）	較快	???	通用工業
S101910	最小（2.0mm）	最快	??	精密/微型

型號及參數信息

Product	Element Type	Resistance	TCR	Case Style	Lead Length (mm)	# Leads	Lead Jacket
S101909PF2S36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	914	2	Stainless steel overbraid with PTFE insulated leads
S101909PF2T6	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	152	2	Teflon insulated lead wires
S101909PF3S40	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	1,016	3	Stainless steel overbraid with PTFE insulated leads
S101910PF2F60	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	1,524	2	FEP over PTFE insulated leads
S101910PF2T1	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	25	2	Teflon insulated lead wires
S101910PF2T100	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	2,540	2	Teflon insulated lead wires
S101910PF2T12	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	305	2	Teflon insulated lead wires
S101910PF2T24	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	610	2	Teflon insulated lead wires
S101910PF2T36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	914	2	Teflon insulated lead wires
S101910PF2T8	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	203	2	Teflon insulated lead wires
S101910PF4T36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	914	4	Teflon insulated lead wires
S101908PF3R36AC1	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	B	914	3	FEP over stainless steel braid and PTFE insulated leads
S101908PF3R36AC3	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	B	914	3	FEP over stainless steel braid and PTFE insulated leads
S101908PF3T36AC1	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	B	914	3	Teflon insulated lead wires
S101909PF2R12	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	305	2	FEP over stainless steel braid and PTFE insulated leads
S101909PF2S48	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	1,219	2	Stainless steel overbraid with PTFE insulated leads
S101909PF2T10	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	254	2	Teflon insulated lead wires
S101909PF2T100	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	2,540	2	Teflon insulated lead wires
S101909PF2T12	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	305	2	Teflon insulated lead wires
S101909PF2T14	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	356	2	Teflon insulated lead wires
S101909PF2T24	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	610	2	Teflon insulated lead wires
S101909PF2T36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	914	2	Teflon insulated lead wires
S101909PF2T48	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	1,219	2	Teflon insulated lead wires
S101909PF3T36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	914	3	Teflon insulated lead wires
S101909PF4T10	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	C	254	4	Teflon insulated lead wires
S101910PF2R12	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	305	2	FEP over stainless steel braid and PTFE insulated leads
S101910PF2S120	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	3,048	2	Stainless steel overbraid with PTFE insulated leads
S101910PF2S36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	914	2	Stainless steel overbraid with PTFE insulated leads
S101910PF2S54	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	1,372	2	Stainless steel overbraid with PTFE insulated leads
S101910PF2S60	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	1,524	2	Stainless steel overbraid with PTFE insulated leads
S101910PF2T14	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	356	2	Teflon insulated lead wires
S101910PF2T20	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	508	2	Teflon insulated lead wires
S101910PF2T60	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	1,524	2	Teflon insulated lead wires
S101910PF3S36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	914	3	Stainless steel overbraid with PTFE insulated leads
S101910PF3T14	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	356	3	Teflon insulated lead wires
S101910PF3T24	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	610	3	Teflon insulated lead wires
S101910PF3T36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	914	3	Teflon insulated lead wires
S101910PF4S36	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	914	4	Stainless steel overbraid with PTFE insulated leads
S101910PF4T6	Platinum, Single	1,000 Ω ±0.12% at 0°C	0.00385 Ω/Ω/°C	D	152	4	Teflon insulated lead wires

Minco是專注于為嚴苛應用提供溫度傳感與控制、熱加熱、柔性電路及集成解決方案。其產品廣泛應用于醫療、航空航天、半導體、能源等多個行業。深圳市立維創展科技有限公司優勢分銷Minco產品，歡迎咨詢了解。
